Description
Reduced Cost of Ownership
Includes advanced business features, which reduce installation and operation costs while at the same time enabling a revenue stream.
Always Connected
Out of the box 4G connectivity, including a free SIM card and connectivity subscription. Ethernet & Wi-Fi options ensure an online charger and thus a high charge up-time.
Easy to Share

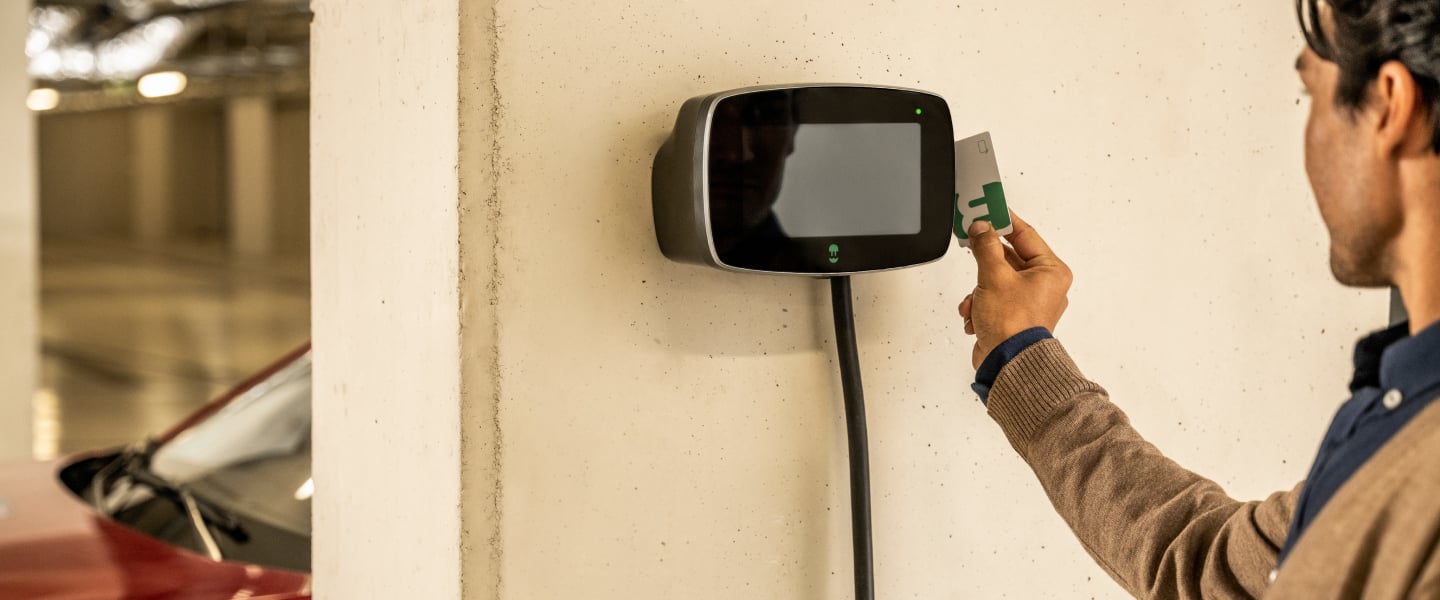

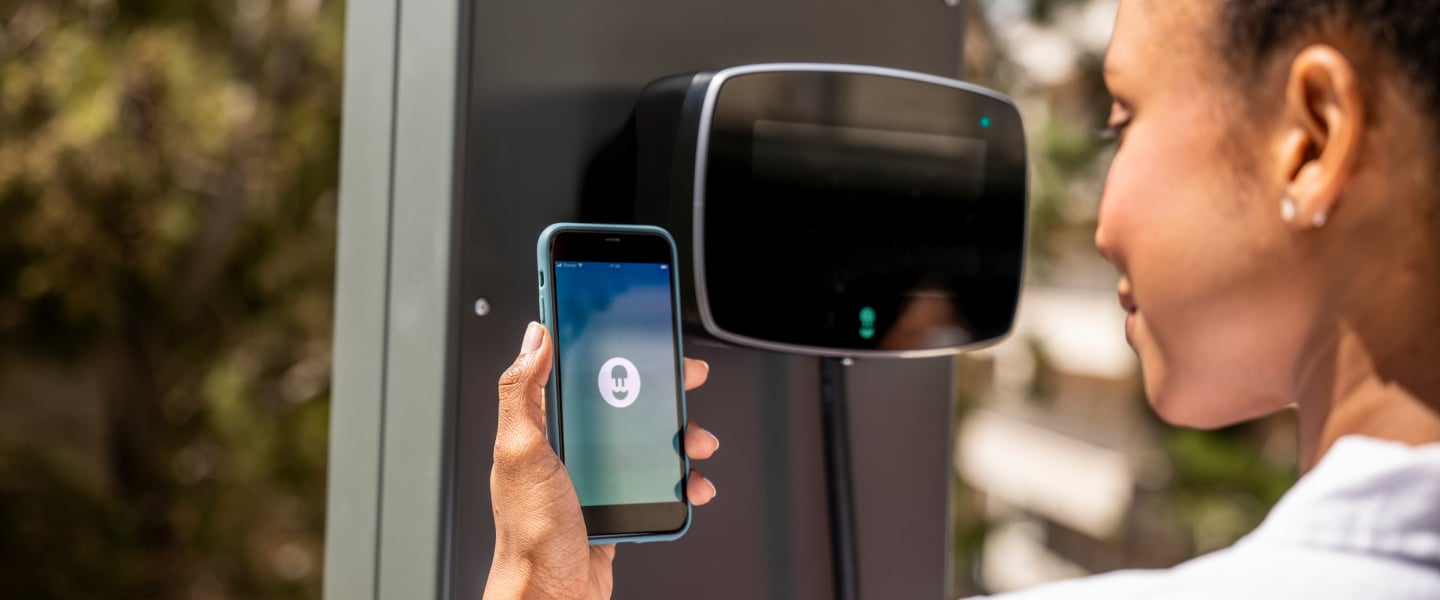

Secure shared access with password protection, RFID cards, or the myWallbox app.
Durable & Reliable
Certified water and dust resistance with IP54 and IK10 protection ratings, allowing for safe indoor or outdoor installation.
Technical Aspects
General Specificactions
Charger: AC
Color : White or Black
Color : White or Black
Connector: type 2 (7.4 kW) / type 2 (11 kW and 22 kW)
Charging mode: Mode 3
Dimensions (without cable): 221x152x115 mm
Weight: 2.4kg (without cable)
Cable: 5m (7m optional)
Operating Temperature: -25 ºC to 40 ºC
Standards:Standards: CE mark (LVD 2014/35/EU, EMCD 2014/30/EU),
EC 61851-1, IEC 61851-21-2, IEC 62196-2
Operating Temperature: -25 ºC to 40 ºC
Standards:Standards: CE mark (LVD 2014/35/EU, EMCD 2014/30/EU),
EC 61851-1, IEC 61851-21-2, IEC 62196-2
Electrical Specificactions
Maximum Charging Power:7,4 kW (single-phase) / 22 kW (three-phase)
Rated Volta AC +10%:400 VRated Current:32 A (Both Single-phase and three-phase)
Cable Section:Up to 5x10mm2
Configurable Current:From 6 A to rated current
Protection Rating:IP54 / IK10
Surge Category:CAT III
Residual Current Detection:
DC 6 mA
Connectivity
Connectivity:
3G/4G connectivity included* / Wi-Fi / Ethernet / Bluetooth
User Identification: PIN Code / RFID Card / myWallbox app

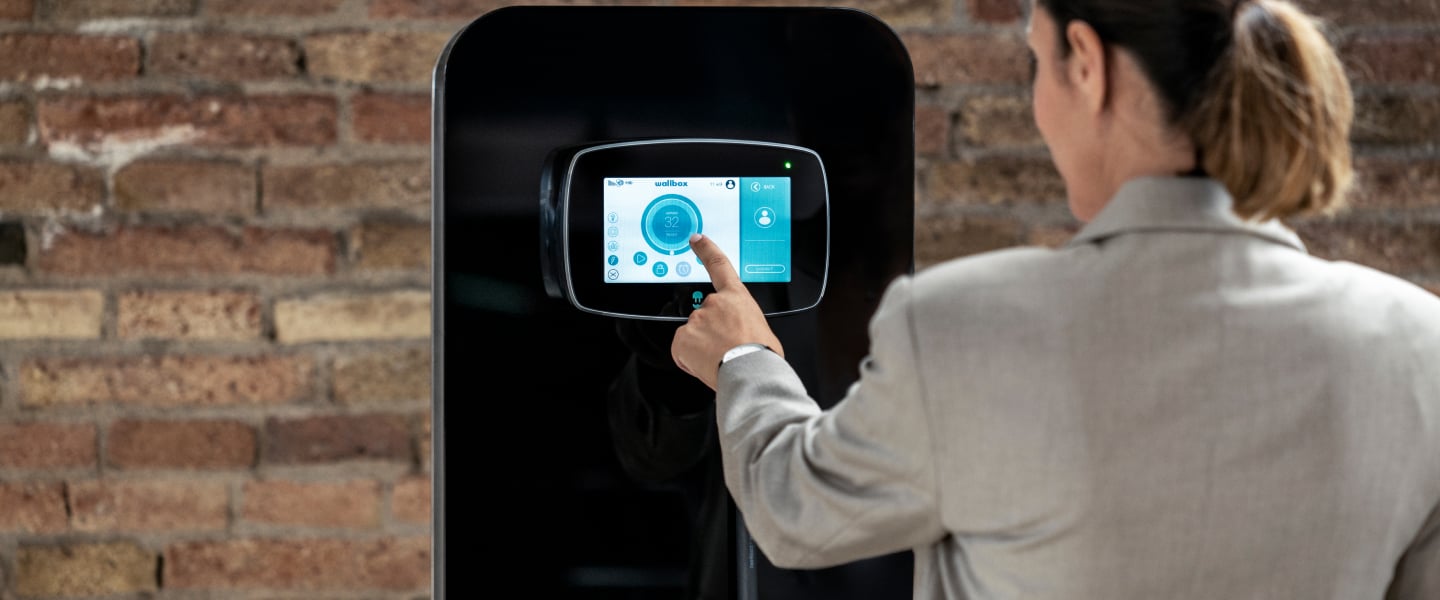

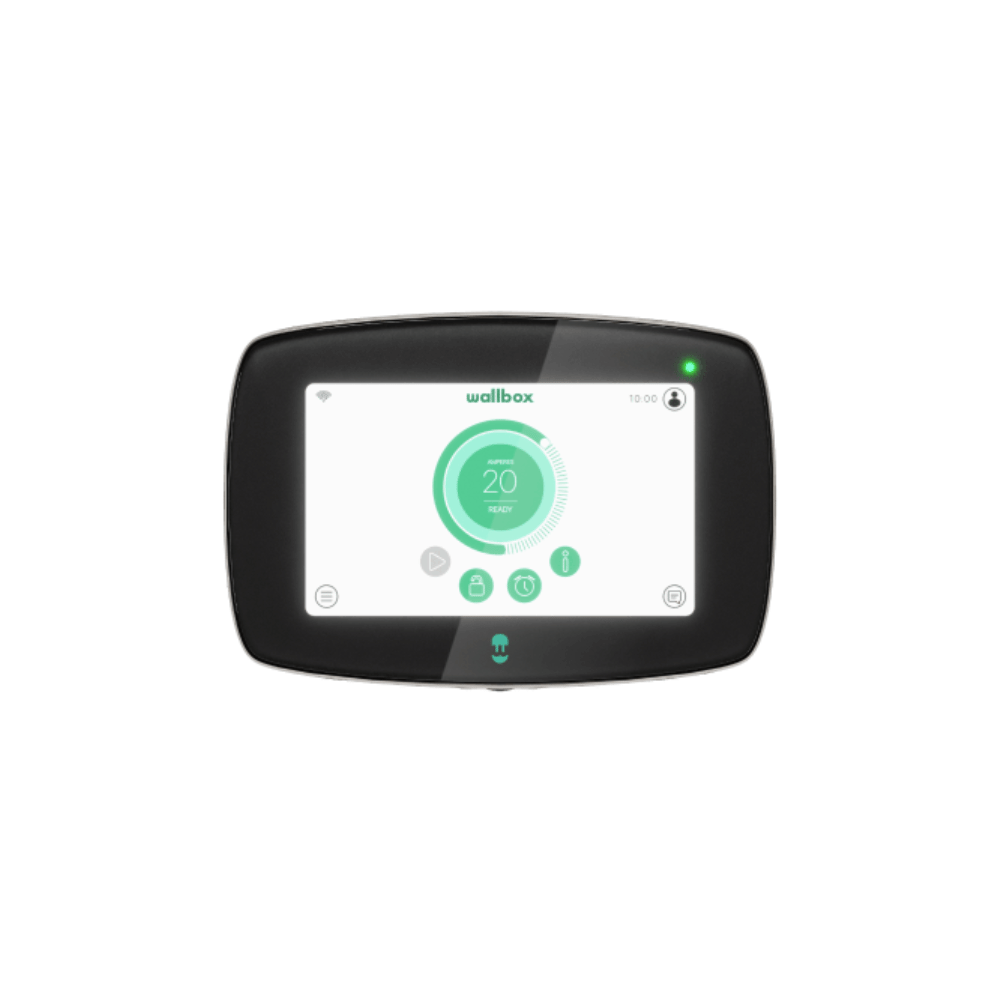

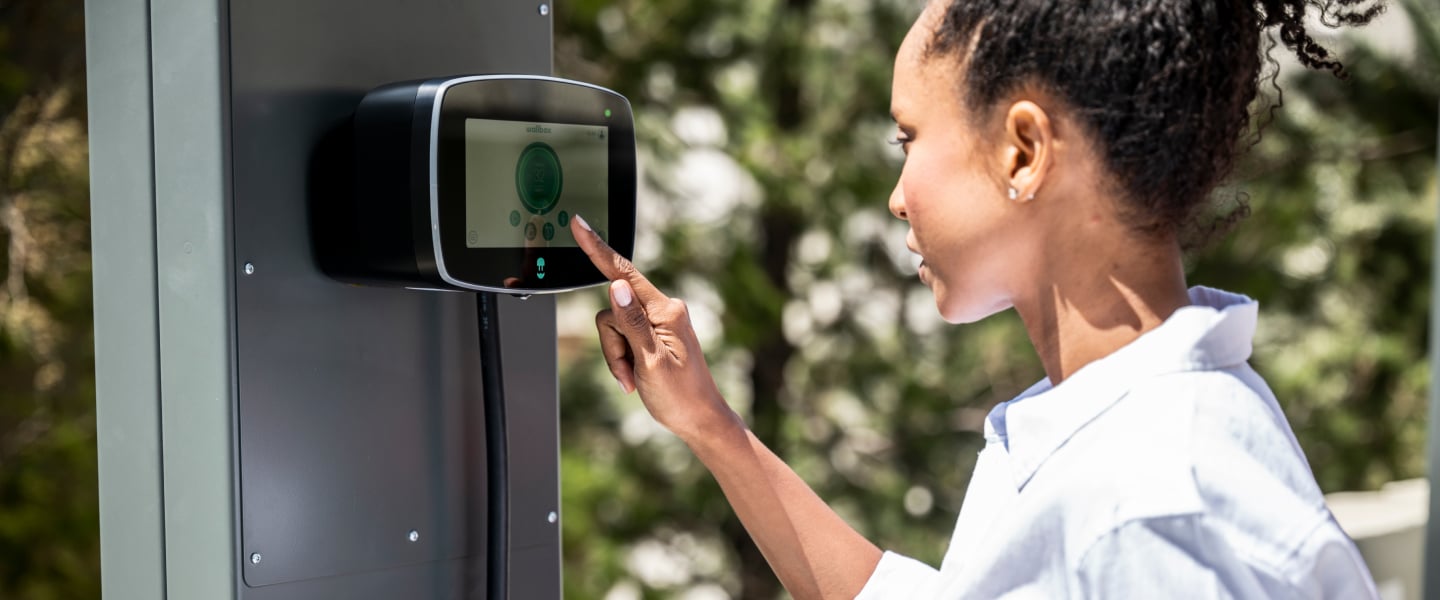

User Interface:
Touchscreen / myWallbox app & portal
Charger Status Information:
Touchscreen / RGB LED / myWallbox app & portal
Compatible features
Power Sharing / Power Boost / Dynamic Power Sharing / MID Meter
Communication Protocol:
myWallbox / OCPP 1.6j
